Used 2008 VECOPLAN, LLC RG 42/60 XL | Shredders

Description

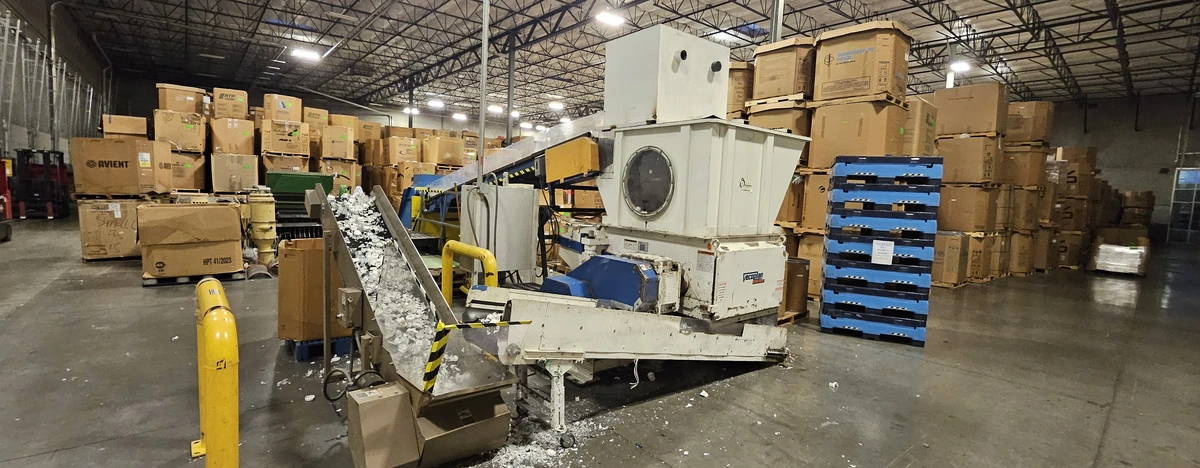

Complete Vecoplan shredding system previously used for product destruction. The system was operational until it was removed from service in October 2025.

System Includes:
• Vecoplan RG42/60XL shredder
• Gaylord tipper
• Inclined infeed conveyor
• Primary outfeed conveyor
• Secondary inclined discharge conveyor

The Gaylord tipper feeds the inclined infeed conveyor, while the shredder discharges onto a slightly inclined conveyor feeding a secondary incline conveyor that drops material directly into a Gaylord box.

Specifications:
• Rotor: 15” Diameter x 42” Width
• Cutters: 40mm crowned cutters
• Quantity of Cutters: 48
• Single hydraulic ram cylinder
• Two screen sizes included
• No screen currently installed
• Approximate weight of shredder body and hopper top: 5,800 lbs

Electrical:
• Gaylord tipper: 120V / Single Phase
• Infeed & outfeed conveyors: 480V / 3 Phase
• Conveyors wired directly into and controlled by the Vecoplan control panel

Gaylord Tipper Features:
• Mounted on steel c-channel base with caster wheels
• 2,500 lb capacity
• Pivot arm supported by flush-mount bearings for smooth operation
• Added steel hydraulic protection panel
• PVC flex sheet installed to prevent material loss between tipper and conveyor

Additional Features:
• Hopper and hopper top included
• Package of new wear parts included:

Drive belt
Hydraulic oil filter
Ram guide rails
Ram face wipers
Springs and washers
• Rubber mounting pads included (currently stored inside hopper)
